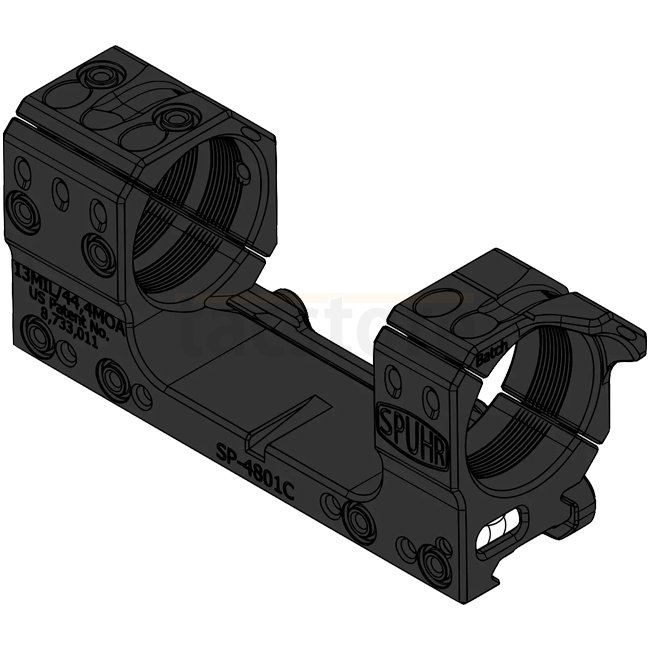

Spuhr SP-4801C Ø34 H30mm 13MIL PIC Gen3

Overview

The Spuhr SP-4801C is a high-quality scope mount designed for rifles equipped with MIL-STD-1913 or STANAG 4694 Picatinny rails. It is especially suitable for bolt-action rifles with one-piece Picatinny rails. This mount provides a 13 MIL (44.4 MOA) tilt, facilitating precise long-range shooting adjustments. With a height of 30 mm and an overall length of 130 mm, it offers versatility for various shooting configurations.

Features

• Specifications:
  • Tube Diameter: 34 mm
  • Height: 30 mm
  • Clearance: 6.8 mm (from the bottom of the tube to the bridge of the mount body)
  • Body Length: 120 mm
  • Overall Length: 130 mm
  • Weight: 227 g
  • Tilt: 13 MIL/44.4 MOA
• Robust Construction: Machined from a single billet of 7000-series aluminum, ensuring exceptional durability and stability. All aluminum parts are hardcoat anodized for enhanced corrosion resistance.
• Accessory Compatibility: Equipped with multiple interfaces, allowing the attachment of various accessories, such as angle cosine indicators, backup sights, lasers, and illumination devices.
• Integrated Bubble Level: Features a bubble level integrated into the rear plane of the mount body to prevent rifle canting, thereby enhancing shooting accuracy.
• Installation Aid: Includes a 10-degree wedge leveling key to assist with leveling during installation, ensuring precise optic alignment.
• Compatibility Note: Not compatible with the SAKO S20 or rifles with two-piece rails. Additionally, as of fall 2023, rear top covers will no longer feature alignment grooves.
