Spuhr A-700 NV Clip-On Adapter

Overview

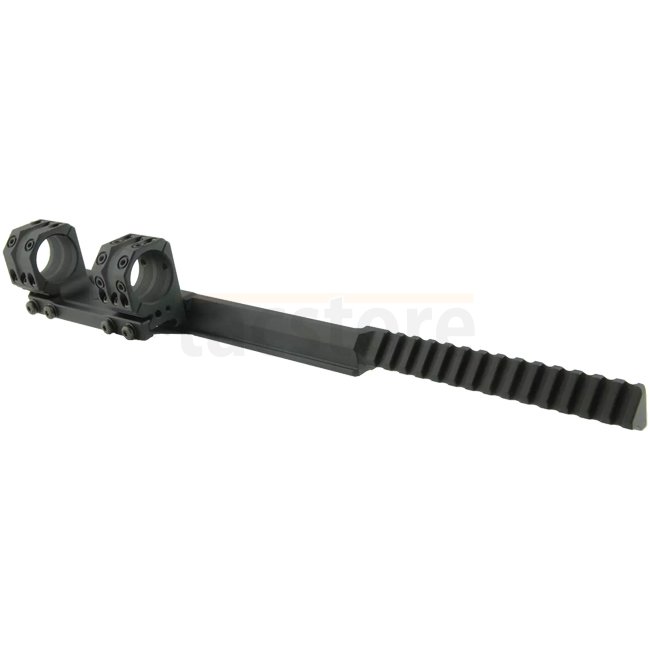

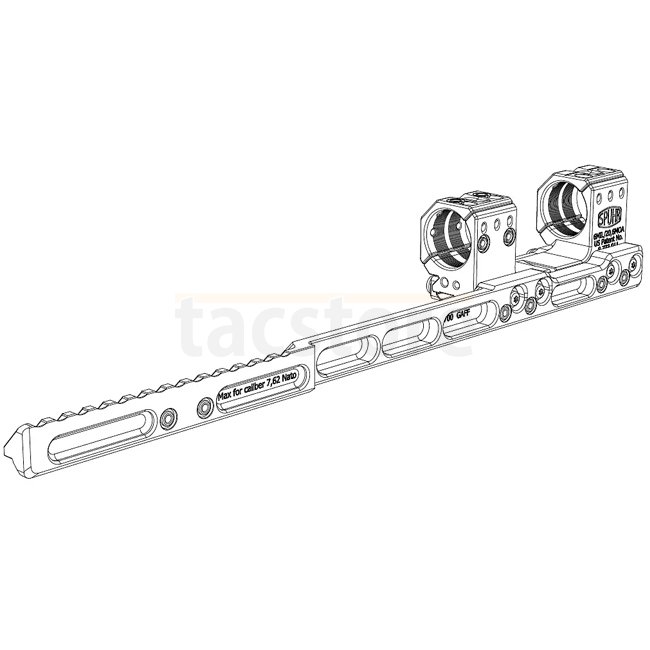

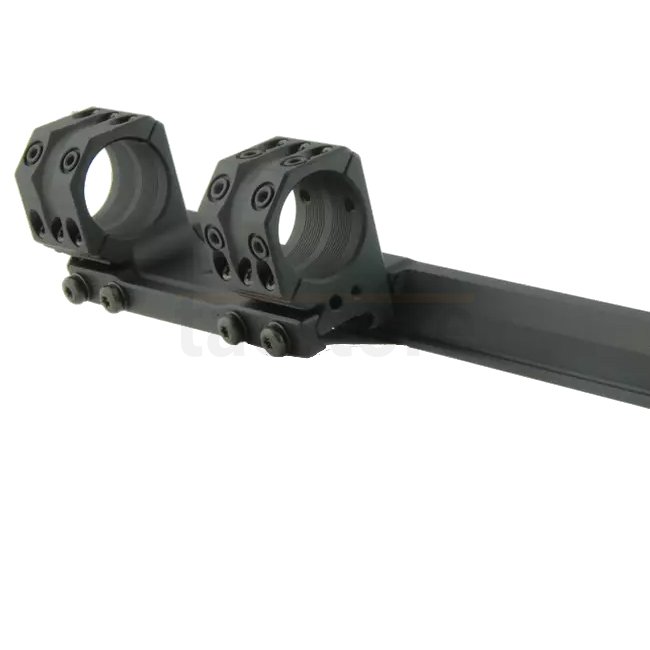

The Spuhr A-700 is an adapter designed to position a clip-on night vision (NV) device in front of and aligned with the primary optic of a firearm. It allows for angle adjustment from 0 to 13 MIL (0 to 44.4 MOA) to match the inclination of the ISMS mount it is attached to, minimizing optical distortion between the NV device and the main optic, thus maximizing target identification and hit probability.

Specifications

• Overall Length: 410 mm (16.14 inches)
• Length from Mount Face: 300 mm (11.81 inches)

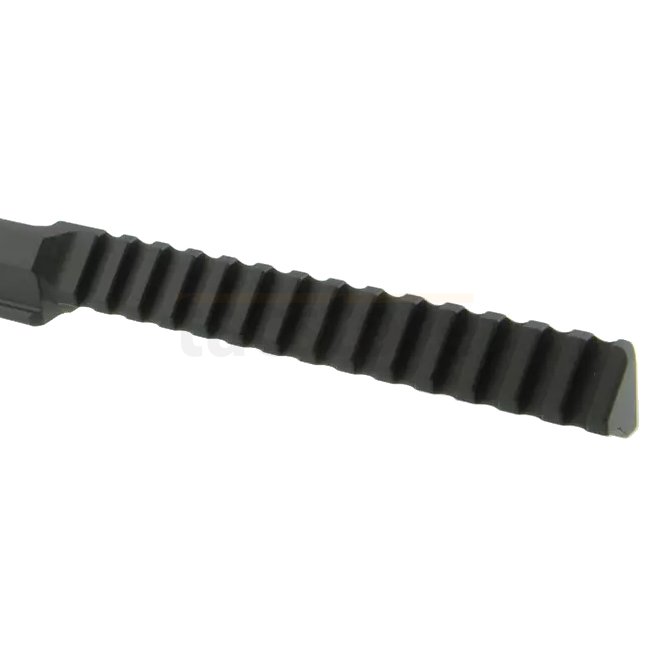

• Picatinny Rail Length: 140 mm (5.51 inches)
• Weight: 200 g (7.0 oz)

Compatibility

Designed for use with non-cantilever SP-**01 and SP-**02 series mounts. Not intended for use on high-recoil rifles.

Features

• Enables precise positioning of a clip-on NV device in front of the primary optic
• Adjustable angle to match the inclination of the ISMS mount
• Reduces optical distortion for improved target identification
• Lightweight construction adds minimal weight to the setup
